4,320 m² Steel Structure Warehouse, El Alto, Bolivia
A heavy-duty steel warehouse engineered and manufactured in China, then shipped and erected in El Alto for La Vitalicia — built to give a timber storage operation a durable, weathertight facility.
Explore This Warehouse in 3D
Drag, zoom, and rotate the model to see the structure from every angle. Key dimensions are shown to scale and can be toggled on or off.
Building: 72.5 m × 60.0 m
Eave Height: 6.0 m
Ridge Height: 9.5 m
Longitudinal Grid: 12 × 6.0 m (Axes 1–13)
Transverse Grid: 20 + 20 + 20 m
Roof Rise: 3.5 m · Roof Slope: 11.67% · Roof Angle: 6.65°
Rainwater Downpipes: 13 per eave / 26 total
Why This Warehouse Was Built
Behind every steel structure is a business problem worth solving. Here's the background, the pressure our client was under, and the reasoning that shaped this warehouse.
Client Industry Background
Our client, La Vitalicia, is a factory owner in El Alto needing a dedicated new warehouse for product storage — specifically the safe, weatherproof storage of timber inventory that previous ad-hoc arrangements couldn't provide.
Building Purpose
The new 4,320 m² facility needed to function as a dedicated timber storage warehouse — with a wide, clear-span interior for stacking and moving stock in and out efficiently.
Reason for Construction
This was an entirely new-build warehouse project — an investment in permanent, on-site storage capacity rather than a temporary or converted space, purpose-built to protect stored timber long-term.
Client's Main Needs
Fast construction, controlled building costs, high durability, a design that met El Alto's local wind, snow, and seismic conditions, and a layout customized to the client's own site and storage needs.
Facing a similar storage or logistics building challenge?
Talk to Our Project EngineersBuilt to Exact, Verifiable Numbers
Every dimension and material below was fixed at the design stage and verified again during fabrication — so what was engineered on paper is exactly what arrived on site.
Need a warehouse sized to your exact operation?
Request a Custom SpecificationEngineering That Earns Its Certificates
Full structural and architectural design was completed in-house to GB 51022-2015, calculated against El Alto's real wind, snow, and seismic conditions — so the warehouse doesn't just look right on a drawing, it holds up in the field.
Want your building calculated for your own local codes?
Start Your Design ConsultationWhat Made This Project Hard — and How We Solved It
Real projects rarely go exactly to plan. Here are four obstacles this warehouse presented, and the specific engineering and logistics decisions that solved them.
Wide-Span Requirement
A 60 m clear span was needed for uninterrupted timber storage, but wide spans push more load onto every column and joint. We used tapered H-section portal frames with optimized connection design, delivering the open floor plan without oversizing the steel.
Local Climate Demands
El Alto's local wind and snow loading, combined with seismic activity, both had to be designed for at once. We specified corrosion-resistant coatings plus seismic-rated connections, so the frame stays sound through wind, snow, and ground movement alike.
Installation Environment Constraints
The client's own local team carried out erection on site, without our crew present. We pre-numbered every bolted member and paired the shipment with a clear erection manual and remote engineer support, so the local crew could raise the frame correctly on their own.
Cost Control
The client needed factory-grade quality on a logistics-company budget. Factory-direct fabrication with no middleman markup, paired with material take-offs that avoided over-ordering, kept the final cost predictable and on budget.
Every site has its own obstacles — let's plan around yours.
Discuss Your Project ChallengesProduct Manufacturing Process
Every steel member for this warehouse passed through the same nine-stage factory process — so quality isn't a hope, it's a checkpoint at every stage.
See the same process at work on your building.
Tour Our Manufacturing CapabilityFrom Our Factory Floor to El Alto's Foundations
Careful packing and container planning meant this warehouse arrived complete, on schedule, and without a single shipment delay.
Want a shipping and container plan for your own project?
Get a Logistics EstimateBuilt for a Fast, Guided Site Assembly
A bolt-together frame system and a clear installation manual meant the client's own local crew could raise the structure with only remote guidance from our engineers.
Foundation Construction
Anchor bolts were set to our drawings' exact tolerances, giving the steel frame a foundation it could bolt straight onto.
Steel Structure Erection
Columns and portal frames went up bay by bay, each one numbered and pre-drilled, so the crew always knew what connected where.
Roof & Wall Installation
Insulated sandwich panels were fitted directly to the purlins, closing in the building and making it weathertight in days, not weeks.
Completion & Handover
A joint walk-through confirmed every dimension and system matched the design, so the client took possession with full confidence.
Ready to plan your own installation timeline?

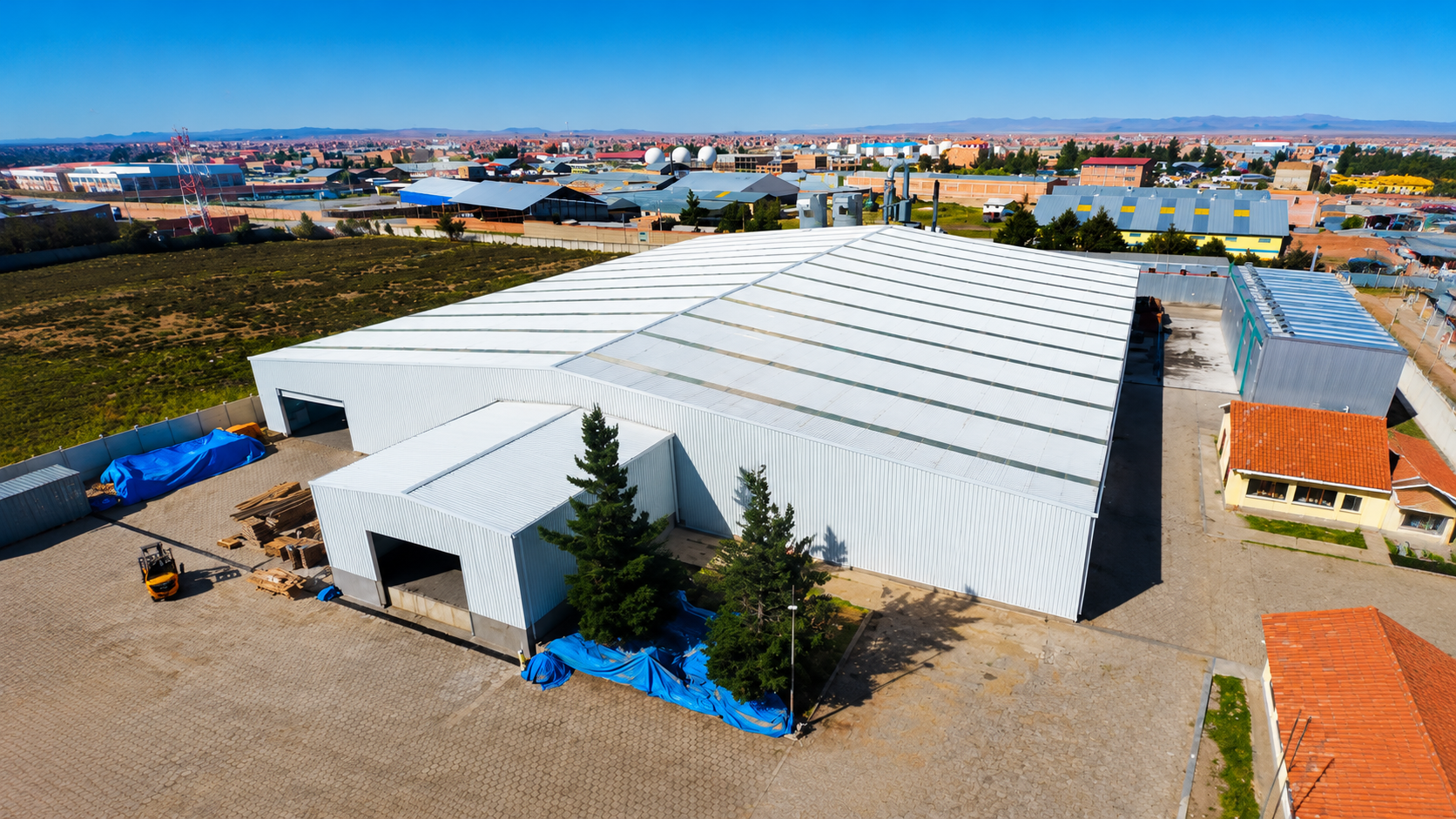

Ask About Installation SupportThe Finished Warehouse, Inside and Out
From the exterior facade down to the bolted joints, every detail was built to the same standard our clients see in the drawings.
Want to see the full photo set from this project?
Request the Full Photo GalleryWhat This Project Shows About Building With Showhoo
This warehouse is one example of a repeatable process — here's what made it possible, and what it means for your next building.
Real Overseas Delivery Experience
Dozens of steel buildings shipped and erected across South America, Africa, and Southeast Asia mean local codes and site conditions aren't a first-time guess for us.
Full In-House Manufacturing
Design, cutting, welding, coating, and packing all happen under one roof, so quality control never depends on a third-party subcontractor.
Custom-Engineered, Not Off-the-Shelf
Every span, load case, and finish is calculated for the specific site, so your building is sized for your operation, not a standard catalog template.
Documented Quality at Every Stage
Material certificates, dimensional checks, and a final acceptance report travel with the project, giving you a paper trail for every claim we make.
Let's talk about what a similar process would look like for your site.
Discuss Your Project With UsMore Steel Buildings Like This One
If this warehouse fits the kind of project you're planning, these related builds may be worth a look too.
Steel Structure Warehouse
Large-span storage buildings engineered for fast turnaround and heavy racking loads.
View Case Study →Steel Structure Workshop
Production-ready workshop buildings with crane systems and reinforced working bays.
View Case Study →Industrial Steel Building
Multi-purpose industrial structures built for durability across demanding site conditions.
View Case Study →See how a similar steel building could work for your own site.
Get a Free Project QuoteCommon Questions About Projects Like This One
Straight answers to what most clients ask before requesting a quote for their own steel warehouse.
For a project of this size, manufacturing typically takes 6–8 weeks, with sea freight adding several more depending on the destination port. We confirm an exact production and shipping schedule once your drawings are approved.
Yes. Every project is recalculated for the destination site's actual wind load, snow load, and seismic requirements — the Bolivia specifications shown above won't simply be copied onto a different location.
Every quote covers structural design and fabrication drawings, all steel materials, and export packing. On-site installation support and supervision are available as an optional add-on depending on your local labor arrangement.
Both options are available. Many clients use their own local crew guided remotely by our engineers, as on this project; others request an on-site supervisor for the full installation period.
Every shipment includes mill material certificates and a final factory inspection report, and the structure itself is backed by our standard structural warranty — full terms are confirmed with your specific quote.
Absolutely — this case study is a starting reference, not a fixed template. Span, height, door placement, and finishes are all adjusted to match your building's footprint and operational needs.
